G-3 Gonio Lens (With Flange) | Volk

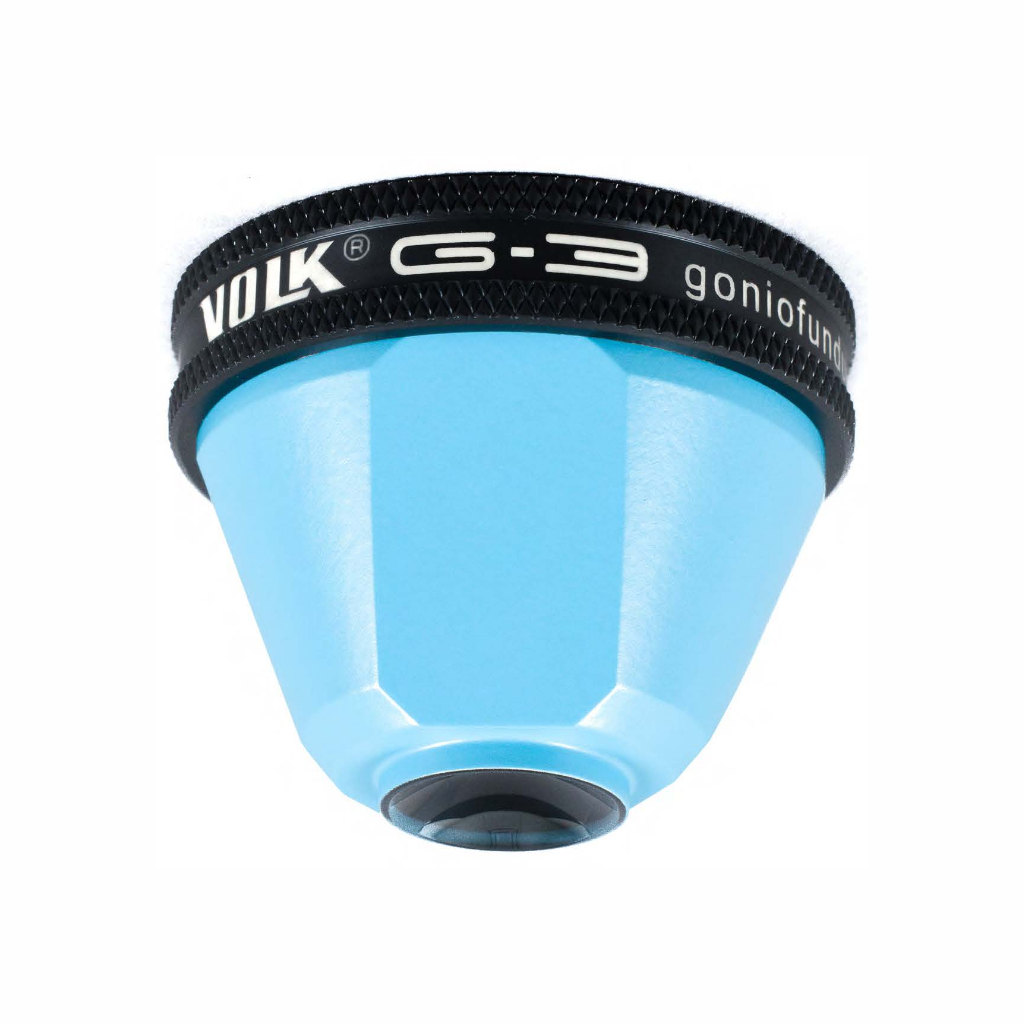

G-3 Gonio Lens

G-3 Gonio Lens

Regular price $592.00 $592.00 Unit price per

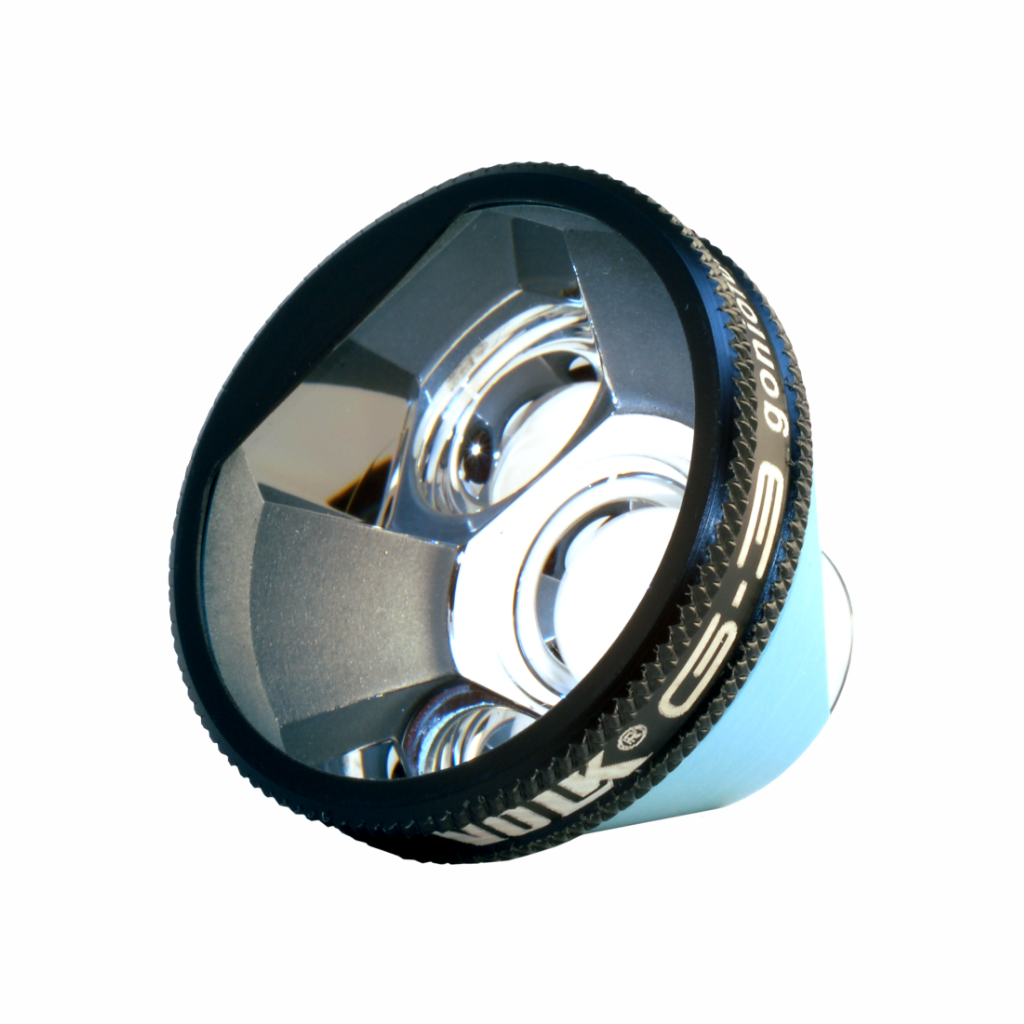

3-Mirror, All-Glass Design

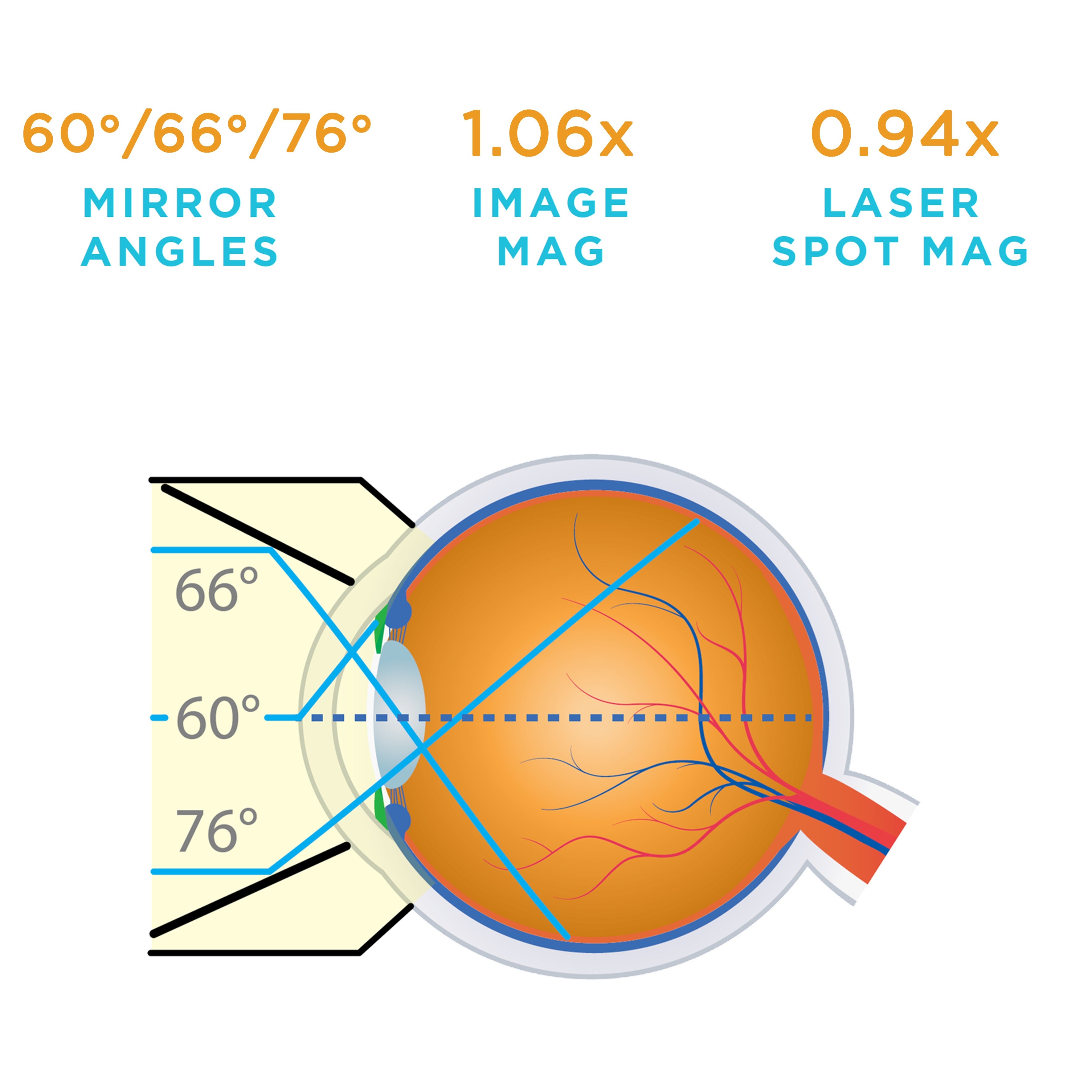

  • 60° mirror provides a view of the iridocorneal angle
  • 66° mirror provides a retinal image from the equator to the ora serrata
  • 76° mirror provides a view of the mid-peripheral/peripheral retina
  • Available in two formats: flanged (recommended for laser trabeculoplasty) and no flanged (recommended for routine gonioscopy)
  • This three mirror Goldman-style lens equipped with unbeatable Volk optics is a must have for every Glaucoma specialist
Mirror Angles Image Magnification Laser Spot Size Contact Diameter
60°/66°/76°

Flange: 1.06x

No Flange: 1.03x

Mini, No Flange:

1.0x

Flange: 0.94x

No Flange: 0.97x

Mini, No Flange: 1.0x

Flange: 15 mm

No Flange: 11.4 mm

 Mini, No Flange:

9.6 mm



With Flange - PART #VG3

No Flange - PART #VG3NF

Mini, No Flange - PART #VG3MININF



Resources:

Cleaning and Care Guide
